Note: This NUC will only work with 1.35V SoDIMMs.

This INTEL NUC Supports only one 2.5" HDD or SSD and one M.2 SSD.

Recommended HDDs:

Seagate ST500LT012 500GB Momentus Laptop Thin 2.5” 5400RPM 7mm SATA2 Hard Drive
WD WD5000LPVX 500GB Blue 2.5” 5400RPM 7mm SATA3 Hard Drive

Recommended SSDs:

Kingston SSDNow V300 60GB 2.5" SATA III SSD SV300S37A/60G
Samsung 850 EVO 120GB 2.5" SATA III SSD MZ-75E120
Crucial BX100 120GB 2.5" SATA III SSD CT120BX100SSD1
Samsung 850 EVO 250GB 2.5" SATA III SSD MZ-75E250
Crucial MX200 250GB 2.5" SATA3 6Gbps 7mm SSD - CT250MX200SSD1

Recommended M.2 SSDs:

Intel 530 180GB M.2 SSD SSDSCKGW180A401
Samsung 850 EVO 250GB M.2 SSD - MZ-N5E250BW
Samsung 850 EVO 120GB M.2 SSD - MZ-N5E120BW
Samsung 850 EVO 500GB M.2 SSD - MZ-N5E500BW

Audio	Up to 7.1 Surround
Back Input/Output Interfaces	2x USB3.0 1x Mini DisplayPort 1x Mini HDMI 1x Gigabit LAN
CPU	Intel 5th Gen Core i7-5557U 3.1GHz Turbo Boost: 3.4GHz
Dimension	115 x 111 x 48.7
Expansion Slots	M.2 (22 x 42, 22 x 60, 22 x 80) 2.5" HDD/SSD (up to 9.5mm thick)
Graphics	Intel HD Graphics 6100
LAN	Gigabit LAN
Memory	2x DDR3 1.35v 1333/1600/1866 MHz (16GB Max)

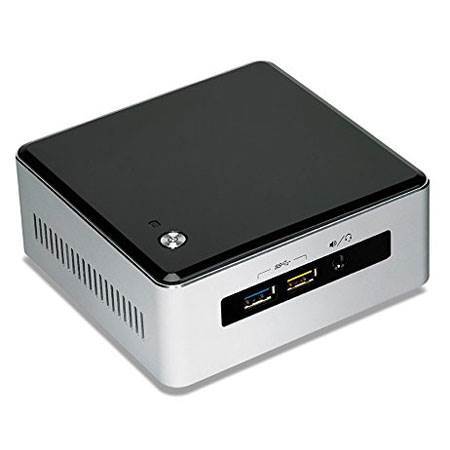

Product Model	NUC5i7RYH
USB	2x USB 3.0 - Front Panel (1x charging capable) 2x USB 3.0 - Back Panel 2x Internal USB 2.0 via Header
Brand	Intel
