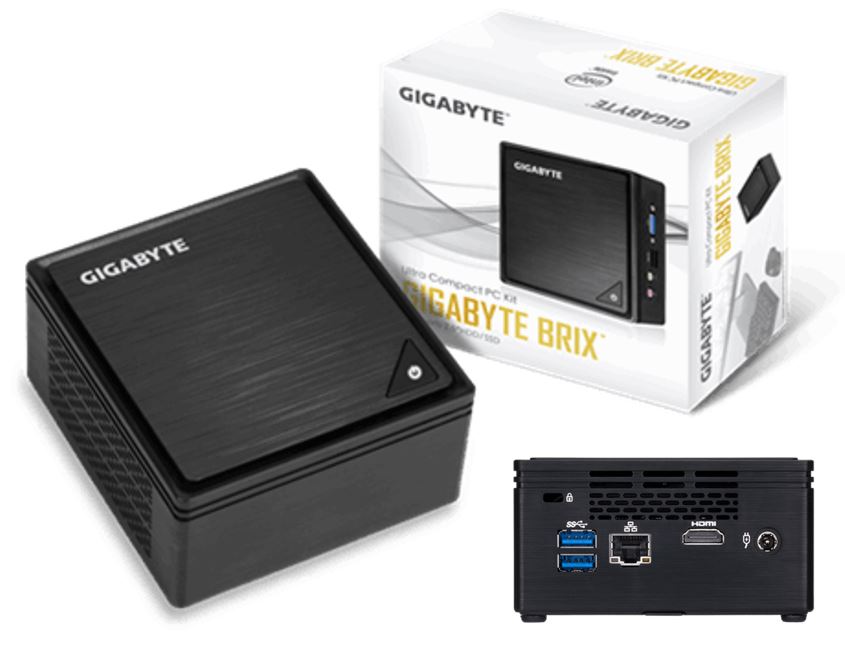

Gigabyte GB-BPCE-3455C Brix Mini NUC PC 0.6L Celeron J3455 DDR3L SODIMM HDMI VGA 1x2.5" SSD 1xM.2 PCIe 4xUSB3 WiFi GbE LAN VESA Ultra Compact Barebone
Features 14nm Intel® J3455 to deliver to the most intuitive and integrated operating systems in the world
Supports 2.5” thickness 7.0/ 9.5mm Hard Drives (1 x 6Gbps SATA3)
Ultra compact PC design – 0.69L (56.1 x 107.6 x 114.4mm)
1 x SO-DIMM DDR3L 1.35V Slots (1333/ 1600/ 1866 MHz)
Intel® IEEE 802.11 ac, Dual Band Wi-Fi & Bluetooth 4.0 NGFF M.2 card
Supports dual displays via a VGA and a HDMI port
Gigabit LAN
Audio jack (Headphone & Microphone)
VESA mounting bracket (75 x 75mm + 100 x 100mm)
Dimension 56.1 mm x 107.6 mm x 114.4 mm (2.21" x 4.24" x 4.5")
Motherboard Size 100 x 105 mm
CPU Intel® Celeron® Processor J3455, 2.3GHz, 4 core (TDP 10W)
Memory 1 x SO-DIMM DDR3L slots (DDR3 1.35V)
1333/ 1600/ 1866 MHz
Max. 8GB
LAN Gigabit LAN (Realtek RTL8111HS)
Wifi Card Intel® Dual Band Wireless-AC 3168
Graphics Intel® HD Graphics 500
Audio Realtek ALC891
VGA Resolution (Max.) 1920 x 1200 @60 Hz
HDMI Resolution (Max.) 3840 x 2160 @30 Hz
Expansion Slots 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Rear I/O 1 x HDMI (1.4)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Side I/O 1 x VGA
1 x Headphone & Microphone jack
2 x USB 3.0
Storage Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)
Power Supply Input: AC 100-240V
Output: DC 19V
2.1A
VESA Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS WIN10 64bit
Environment System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
Redefining the Desktop PC
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based on a brushed aluminum surface chassis. Ideal for a broad range of computing applications at home or in the office |
