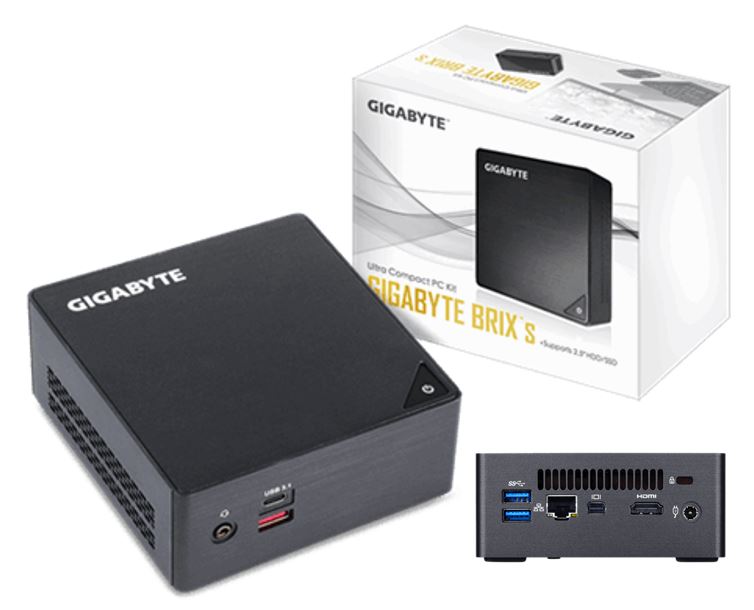

Gigabyte BKi3HA-7100 Brix Ultra Compact Barebone Mini PC 0.6L i3-7100U 2xDDR4 SODIMM HDMI mDP 1x2.5" SSD 1xM.2 PCIe USB-C WiFi Intel GbE LAN VESA

Features Latest Intel® 7th generation Core Processors
Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
Supports 2.5¡± HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
1 x M.2 SSD (2280) slot
2 x SO-DIMM DDR4 slot (2133 MHz)
Intel® IEEE 802.11 ac ,Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
Intel® HD Graphics 620
2 x USB3.1 (1* USB Type-C™)
2 x USB 3.0
HDMI 2.0
HDMI plus Mini DisplayPort Outputs (Supports dual displays)
Intel Gigabit lan
Headphone/Microphone Jack
VESA mounting Bracket (75 x 75mm + 100 x 100mm)

Dimension 46.8 mm x 112.6 mm x 119.4 mm (1.84" x 4.43" x 4.7")
Motherboard Size 105 x 110 mm
CPU Intel® Core™ i3-7100U
2.4GHz
Memory 2 x SO-DIMM DDR4 slots
2133MHz
Max. 32GB
LAN Gigabit LAN (Intel i219LM)
Wifi Card Intel® Dual Band Wireless-AC 3168
Graphics Intel® HD Graphics 620
Audio Realtek ALC255
HDMI Resolution (Max.) 3840 x 2160 @ 60Hz
(HDMI 2.0 and HDCP 2.2 )
Mini DP Resolution (Max.) 3840 x 2160 @ 60Hz
Expansion Slots 1 x M.2 slot (2280_storage) PCIe /SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O 1 x USB 3.1 type C
1 x USB3.1
1 x head phone jack with MIC
Rear I/O 1 x HDMI (2.0)
1 x Mini DisplayPort (1.2)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Storage Supports 2.5¡± HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
USB3.1 Asmedia
Power Supply Input: AC 100-240V
Output: DC 19V
3.42A
VESA Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS WIN10 64bit
Environment System Environment Operating Temperature: 0¡ãC to +35¡ãC
System Storage Temperature: -20¡ãC to +60¡ãC
